Photometric
- Item code
- LP-STL351010
- Output
- 800 lm · 10 W
- Beam angle
- 110°
- Peak intensity
- 281 cd
- Centre lux at 2 m / 3 m
- 70 / 31 lx
- Beam width at 3 m
- 8.57 m
- BUG rating
- B1-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Wall Surface
Dor
Black & Dark Gray
White

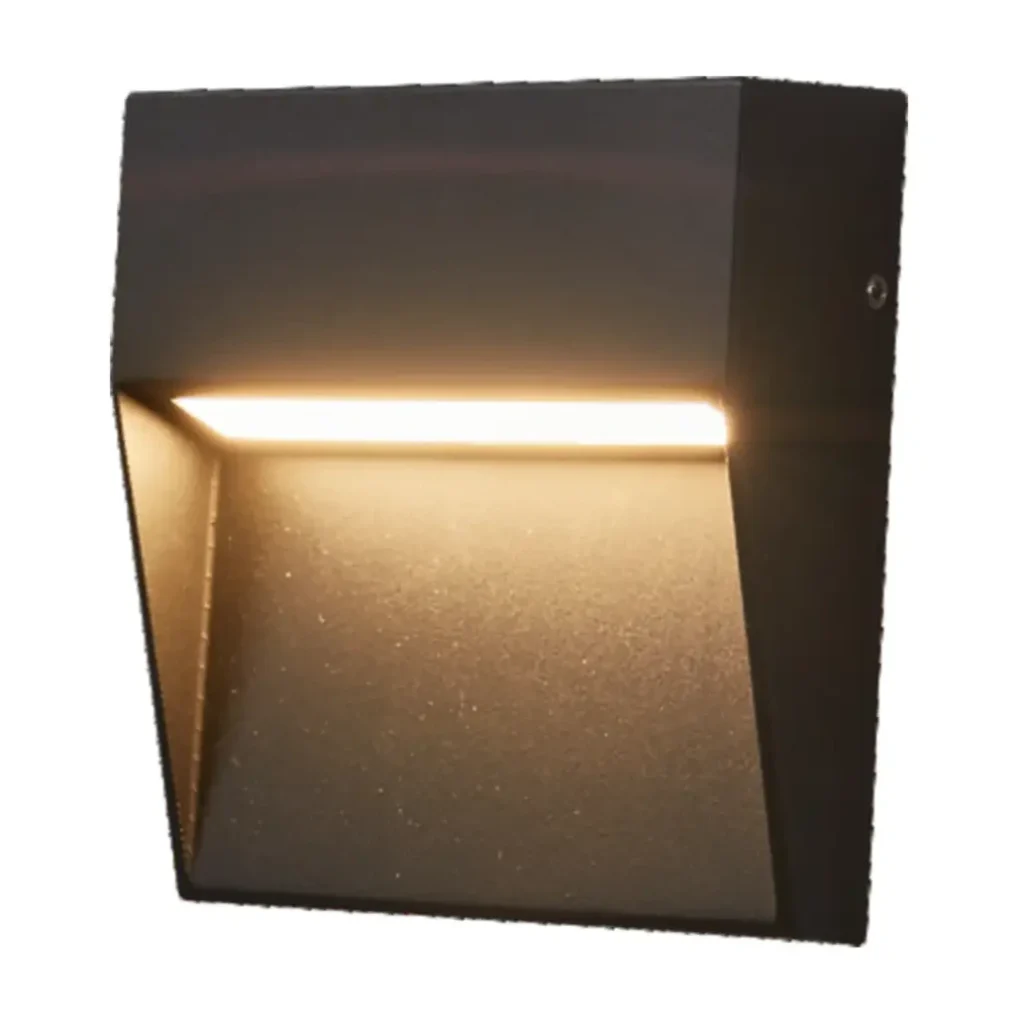

Dor, the surface mounted Dor step light features a slim-line, cast aluminium body and cable gland for easy installation made of aluminum and polycarbonate, it has IP65 protection to guarantee its use outdoors. trim features a special chromate process before a polyester powder coated finish is applied, for extended wear in harsh external environments. It is a surface-mounted LED step light that stands out for its extremely fine design.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STL351010 | 10W | LED | 800lm | A150 X B35 X C150 mm |
| LP-STL351012 | 12W | LED | 960lm | A201 X B35 X C91 mm |
Technical Specification
Construction
HousingDie-Casting Aluminum
DiffuserClear / Frosted Glass
Color AvailableWhite, Black & Dark-Gray
ReflectorAluminium Reflector
Optical & Performance
Beam Angle110°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 55C°
IP Rating65
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
