Photometric
- Item code
- LP-260208
- Output
- 640 lm · 8 W
- Beam angle
- 45°
- Peak intensity
- 1,064 cd
- Centre lux at 2 m / 3 m
- 266 / 118 lx
- Beam width at 3 m
- 2.49 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

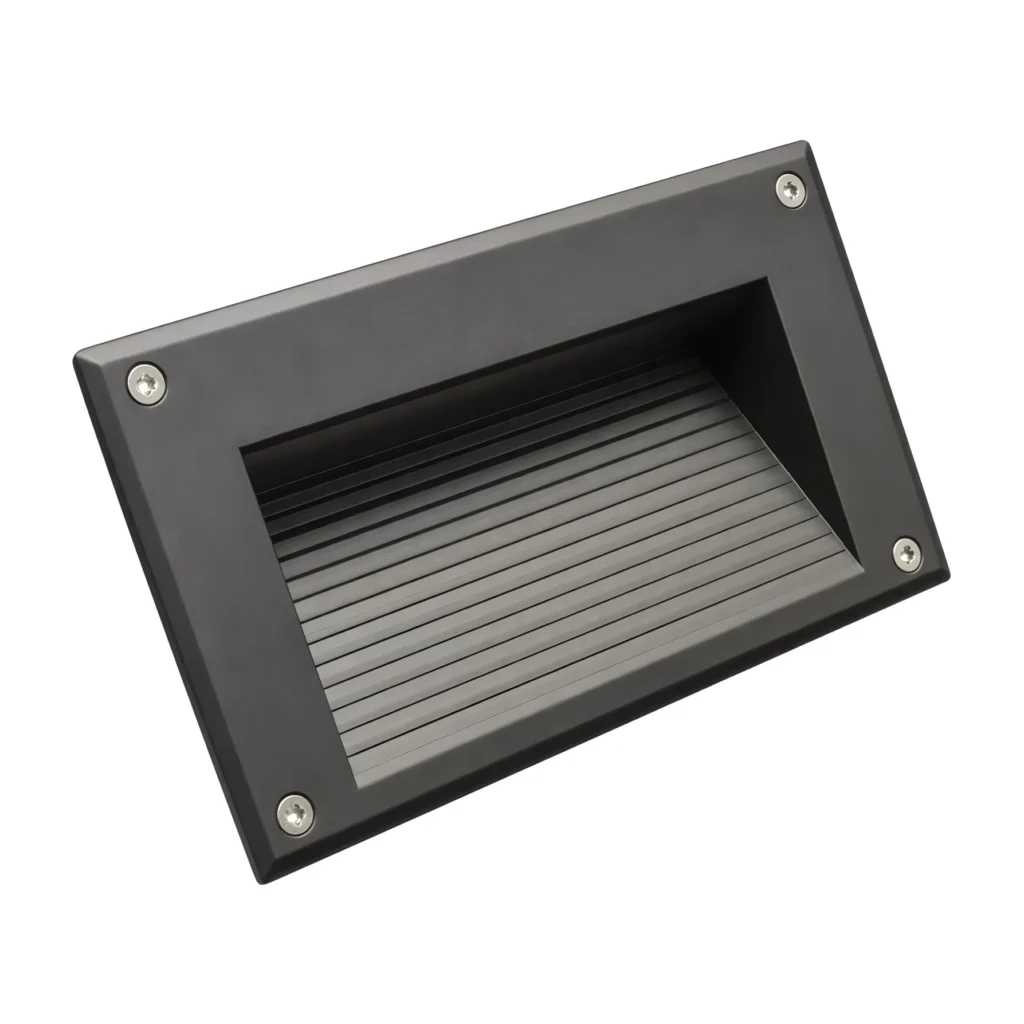

Wall Recessed
Wall Recessed
Black
White and Gray
Low maintenance requirements with easier and quicker installation. Compact recessed round or square wall luminaires. Partial fitted with decorative light around the rings
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-260208 | 08W | LED | 640lm | A122 X B99 X C68 mm |
Technical Specification
Construction
HousingDie cast aluminum body with powder coated.
Color AvailableBlack, White and Gray
Optical & Performance
Beam Angle45°
Electrical
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ +45C°
IP Rating44
Further Details
StandardsDesigned and Manufactured to comply with EN 60598
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
