Photometric
- Item code
- LP-STL275101
- Output
- 120 lm · 1 W
- Beam angle
- 65°
- Peak intensity
- 103 cd
- Centre lux at 2 m / 3 m
- 26 / 11 lx
- Beam width at 3 m
- 3.82 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

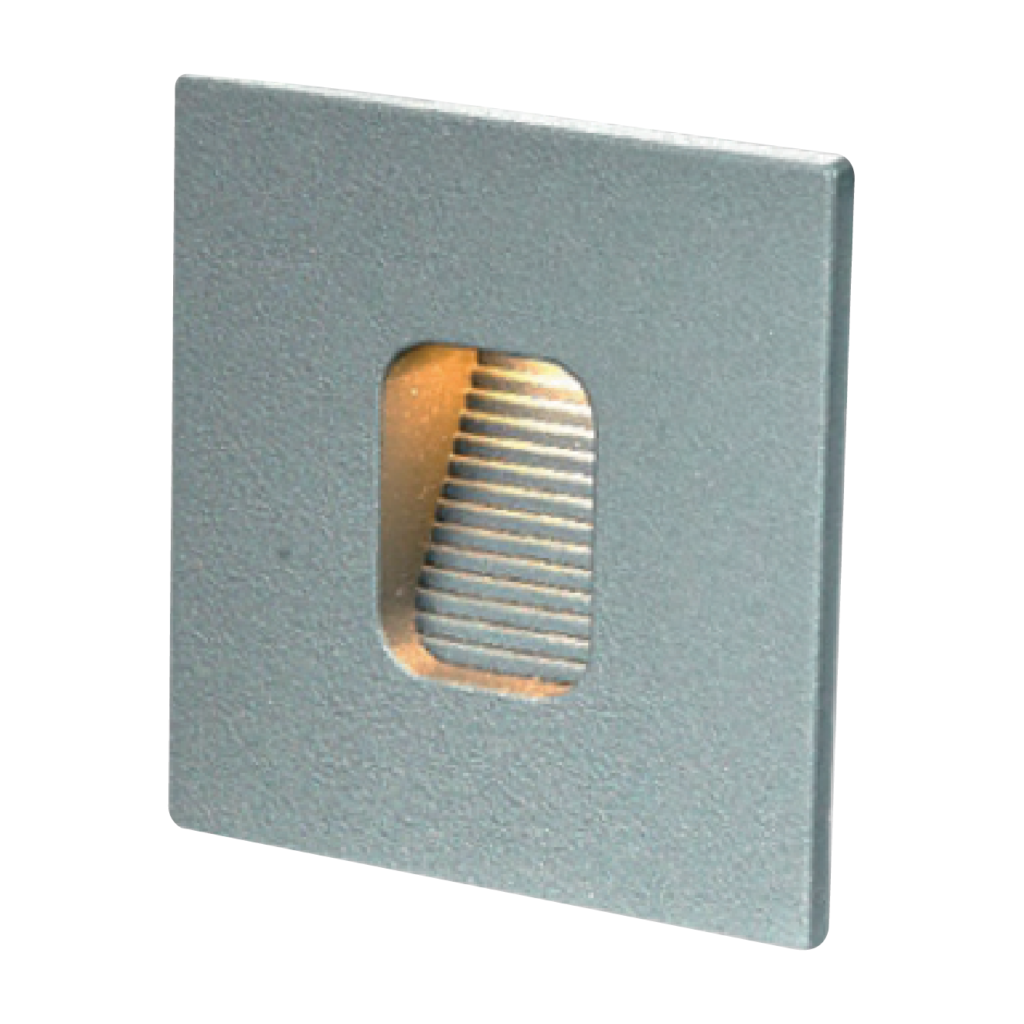

Wall Recessed
Ember
Choice of RAL Colors
A recessed wall light is a small luminaire designed to be installed surface mounted. Its high-quality raw material ensures high resistance to dust, humidity and water. High efficiency LED lights provide more luminous and brighter with low consumption. This product has features as easy installation and low maintenance requirements. It enhances overall brightness and creates mood lighting. It is suitable for application as public, residential or pedestrian areas, parks, gardens and shopping malls.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STL275101 | 01W | LED | 120lm | A80 X B48 X C80 mm |
| LP-STL275103 | 03W | LED | 360lm | A80 X B48 X C80 mm |
Technical Specification
Construction
HousingPowder Coated Die-Casting Aluminum
DiffuserPolycarbonate Optical Lens
Color AvailableChoice of RAL Colors
Optical & Performance
Beam Angle65° / 90°
Lifespan>50,000 Hours (L80 B10 F10)
Electrical
VoltageAC85~265V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-30C° ~ +50C°
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
