Photometric
- Item code
- LP-STL358001
- Output
- 120 lm · 1 W
- Beam angle
- 24°
- Peak intensity
- 549 cd
- Centre lux at 2 m / 3 m
- 137 / 61 lx
- Beam width at 3 m
- 1.28 m
- BUG rating
- B0-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Wall Recessed

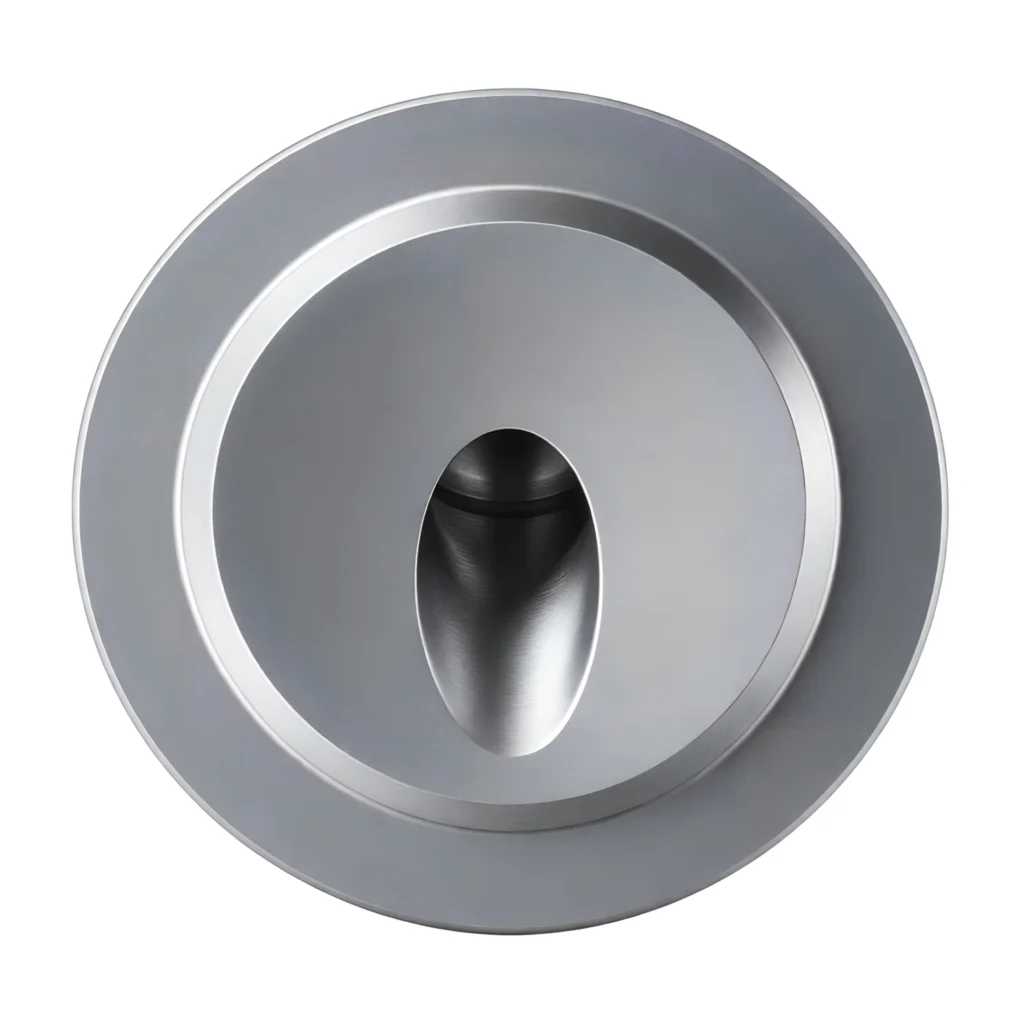

Bam
Gray
Bam LED wall step light with easy installation, this light adopts die-cast aluminum body. This wall step ideal Applications that require continuous stairway, lobby, reception, corridors, etcs. Light good to provide high bright lighting to stairway, lobby, reception, corridors etcs.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STL358001 | 01W | LED | 120lm | A80 X B57 X C47.5 mm |
| LP-STL358002 | 02W | LED | 240lm | A80 X B57 X C47.5 mm |
Technical Specification
Construction
HousingDie-Casting Aluminum with Powder Coating
DiffuserOptical Lens, Molding Shape Silicon Seal
Color AvailableGray
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 55C°
IP Rating65
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
