Photometric
- Item code
- LP-MG03-12
- Output
- 1,200 lm · 12 W
- Beam angle
- 38°
- Peak intensity
- 2,777 cd
- Centre lux at 2 m / 3 m
- 694 / 309 lx
- Beam width at 3 m
- 2.07 m
- UGR
- <19
- CRI
- 90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Magnetic Series
Pivot
Black
White

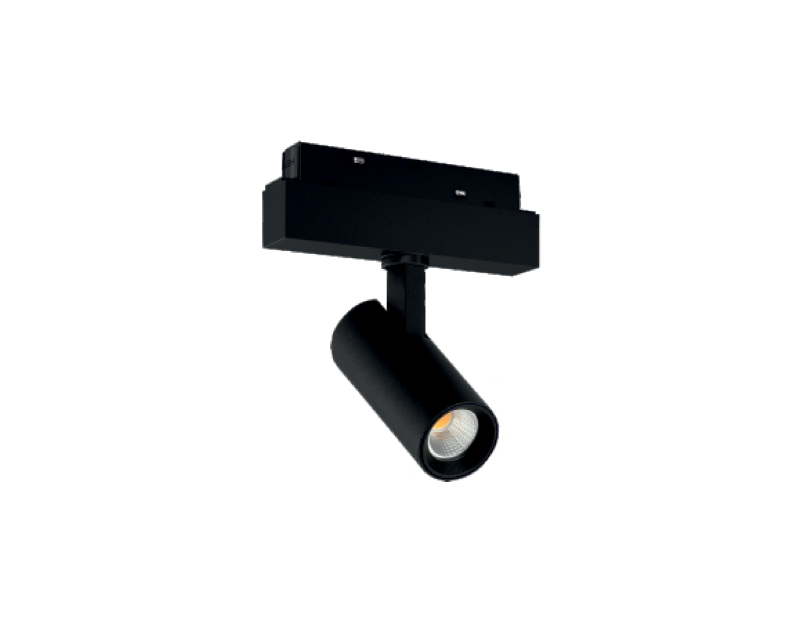

Pivot is an adjustable spotlight from the LIGHT PLUS Magnetic Series, running on the 48V magnetic track. CRI 90, IP44. Suited to modern workspaces, institutions, small format retail outlets, hotels and high-end villas.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-MG03-08 | 8W | LED | 800lm | Ø 34.5 x L120mm |
| LP-MG03-12 | 12W | LED | 1200lm | Ø 45 x L110mm |
| LP-MG03-18 | 18W | LED | 1800lm | Ø 55.3 x L140mm |
| LP-MG03-30 | 30W | LED | 3000lm | Ø 75 x L185mm |
Technical Specification
Construction
Color AvailableBlack / White
Optical & Performance
Beam Angle15°/24°/38°/40°/45°/60°
CRI90
Electrical
Power Factor0.9
Input VoltageDC 48V
Protection & Environment
IP RatingIP44
Working Temperature-10°C~40°C
Dimensions & Mounting
Mounting48V magnetic track system
Further Details
Light SourceCOB LED
AdjustableYes
LEDIndoorCRI 90
