Photometric
- Item code
- LP-MG04-18
- Output
- 1,530 lm · 18 W
- Beam angle
- 38°
- Peak intensity
- 3,540 cd
- Centre lux at 2 m / 3 m
- 885 / 393 lx
- Beam width at 3 m
- 2.07 m
- UGR
- <19
- CRI
- 90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Magnetic Series
Honey
Black
White

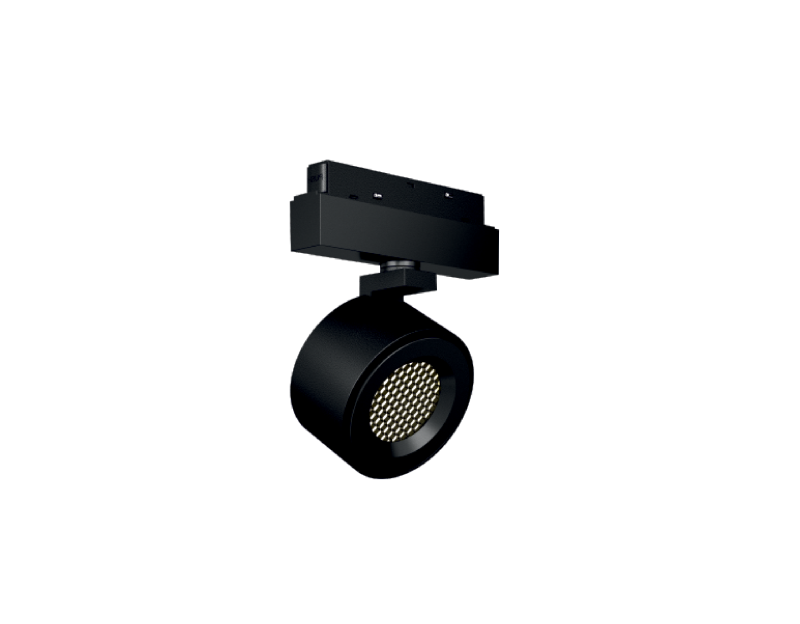

Honey is a spotlight with a honeycomb anti-glare louvre from the LIGHT PLUS Magnetic Series, running on the 48V magnetic track. CRI 90, IP44. Suited to modern workspaces, institutions, small format retail outlets, hotels and high-end villas.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-MG04-12 | 12W | LED | 1020lm | Ø 85 x H47mm |
| LP-MG04-18 | 18W | LED | 1530lm | Ø 105 x H52mm |
| LP-MG04-24 | 24W | LED | 2040lm | Ø 125 x H57mm |
Technical Specification
Construction
Color AvailableBlack / White
Optical & Performance
Beam Angle15°/24°/38°
CRI90
Electrical
Power Factor0.9
Input VoltageDC 48V
Protection & Environment
IP RatingIP44
Working Temperature-10°C~40°C
Dimensions & Mounting
Mounting48V magnetic track system
Further Details
Light SourceCOB LED
AdjustableNo
LEDIndoorCRI 90
