Photometric
- Item code
- LP-MG11-16
- Output
- 1,600 lm · 16 W
- Beam angle
- 160°
- Peak intensity
- 346 cd
- Centre lux at 2 m / 3 m
- 86 / 38 lx
- Beam width at 3 m
- 34.03 m
- UGR
- <19
- CRI
- 90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Magnetic Series
Pearl
Black
White

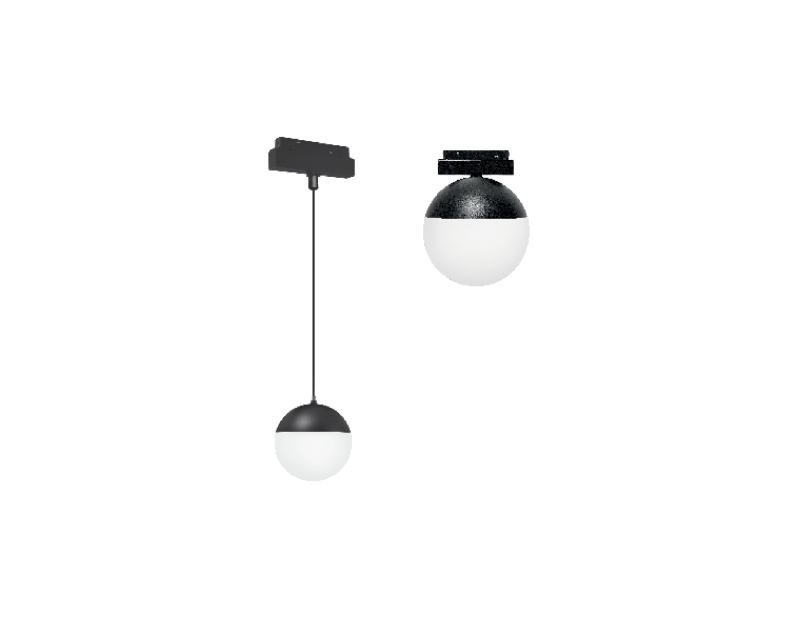

Pearl is an opal globe pendant from the LIGHT PLUS Magnetic Series, running on the 48V magnetic track. CRI 90, IP44. Suited to modern workspaces, institutions, small format retail outlets, hotels and high-end villas.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-MG11-08 | 8W | LED | 800lm | Ø 110 x 1200mm |
| LP-MG11-16 | 2x8W | LED | 1600lm | Ø 110 x 1200mm |
| LP-MG11-15 | 15W | LED | 1500lm | Ø 175 x 223mm |
Technical Specification
Construction
Color AvailableBlack / White
Optical & Performance
Beam Angle160°
CRI90
Electrical
Power Factor0.9
Input VoltageDC 48V
Protection & Environment
IP RatingIP44
Working Temperature-10°C~40°C
Dimensions & Mounting
Mounting48V magnetic track system
Further Details
Light SourceSMD LED
AdjustableNo
LEDIndoorCRI 90
