Home / Products / Magnetic Series / Wave

Photometric

Item code: LP-MG14-28
Output: 1,680 lm · 28 W
Beam angle: 150°
Peak intensity: 386 cd
Centre lux at 2 m / 3 m: 97 / 43 lx
Beam width at 3 m: 22.39 m
UGR: <19
CRI: 90

Download IES Download LDT Photometric data sheet

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Magnetic Series

Wave

Black

White

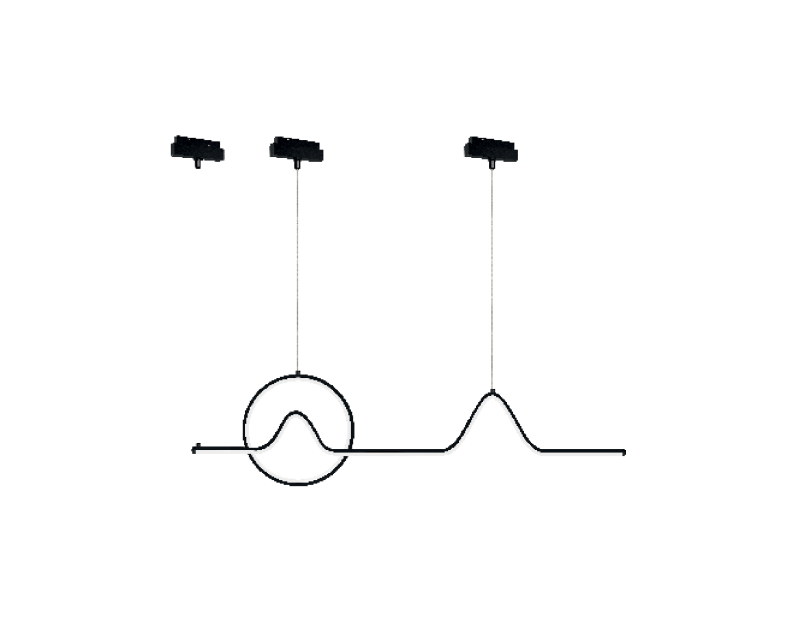

Wave is a decorative wave pendant from the LIGHT PLUS Magnetic Series, running on the 48V magnetic track. CRI 90, IP20. Suited to modern workspaces, institutions, small format retail outlets, hotels and high-end villas.

Item Codes

Item Code	Power	Lamp	Lumen	Dimensions
LP-MG14-28	28W	LED	1680lm	Ø 300 x L1067mm

Technical Specification

Construction

Color AvailableGold / Black / White

Optical & Performance

Beam Angle150°

CRI90

Electrical

Power Factor0.9

Input VoltageDC 48V

Protection & Environment

IP RatingIP20

Working Temperature-10°C~40°C

Dimensions & Mounting

Mounting48V magnetic track system

Further Details

Light SourceSMD LED

AdjustableYes

LEDIndoorCRI 90

Downloads

Download all

PDF Tender Text 55.8 KB ↓ PDF UKCA Declaration of Conformity ↓ PDF CE Declaration of Conformity ↓ PDF REACH Declaration ↓ IES IES photometric file · LP-MG14-28 2 KB ↓ LDT LDT photometric file (EULUMDAT) · LP-MG14-28 3 KB ↓
