Photometric
- Item code
- LP-SL172310
- Output
- 1,200 lm · 10 W
- Beam angle
- 36°
- Peak intensity
- 3,088 cd
- Centre lux at 2 m / 3 m
- 772 / 343 lx
- Beam width at 3 m
- 1.95 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

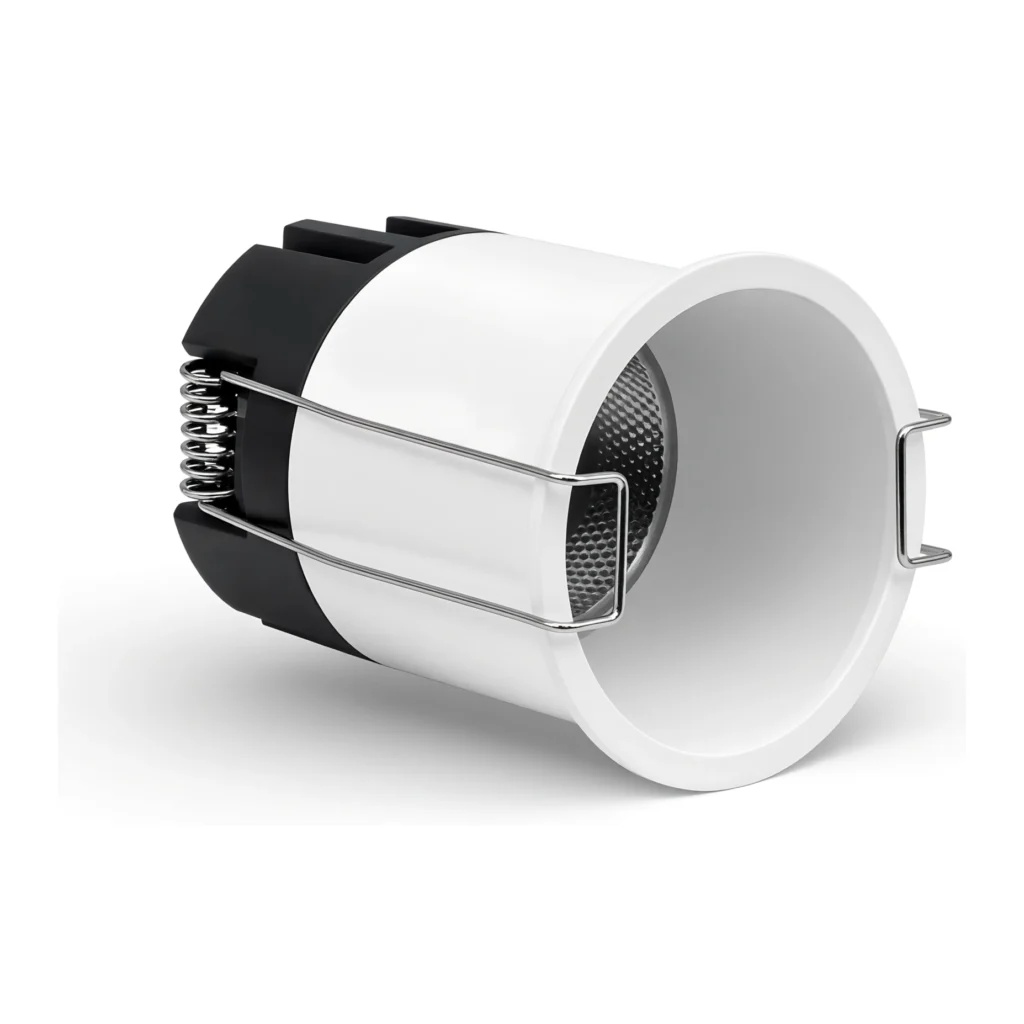

Spot Lights
ARC
Black
White
This focused lighting solution is crafted from robust die-cast aluminum with a protective, high-quality finish, ensuring long term durability and resistance to typical indoor wear. Designed for recessed ceiling installation, it combines a sleek, discreet aesthetic with powerful, energy-efficient LED illumination, enhancing indoor spaces with both elegance and reliable performance.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions | Cut Out |
|---|---|---|---|---|---|
| LP-SL172307 | 07W | LED | 840lm | A62 X B78 mm | Ø55 mm |
| LP-SL172310 | 10W | LED | 1200lm | A72 X B78 mm | Ø65 mm |
| LP-SL172315 | 15W | LED | 1800lm | A82 X B78 mm | Ø75 mm |
Technical Specification
Construction
HousingDie Cast Aluminum
DiffuserPMMA Opal PC Lens
Color AvailableWhite , Black
ReflectorMirror Finished Aluminum Reflector
Optical & Performance
Lifespan>50,000 Hours (L80 B10)
Beam Angle12° / 24° / 36°
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ +60C°
IP Rating20
TMSeries WiringRohsRecycleProtectionPluginIndoorLM 80LEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
