Home / Products / LED Drivers / SR-2701S-N
LED Drivers

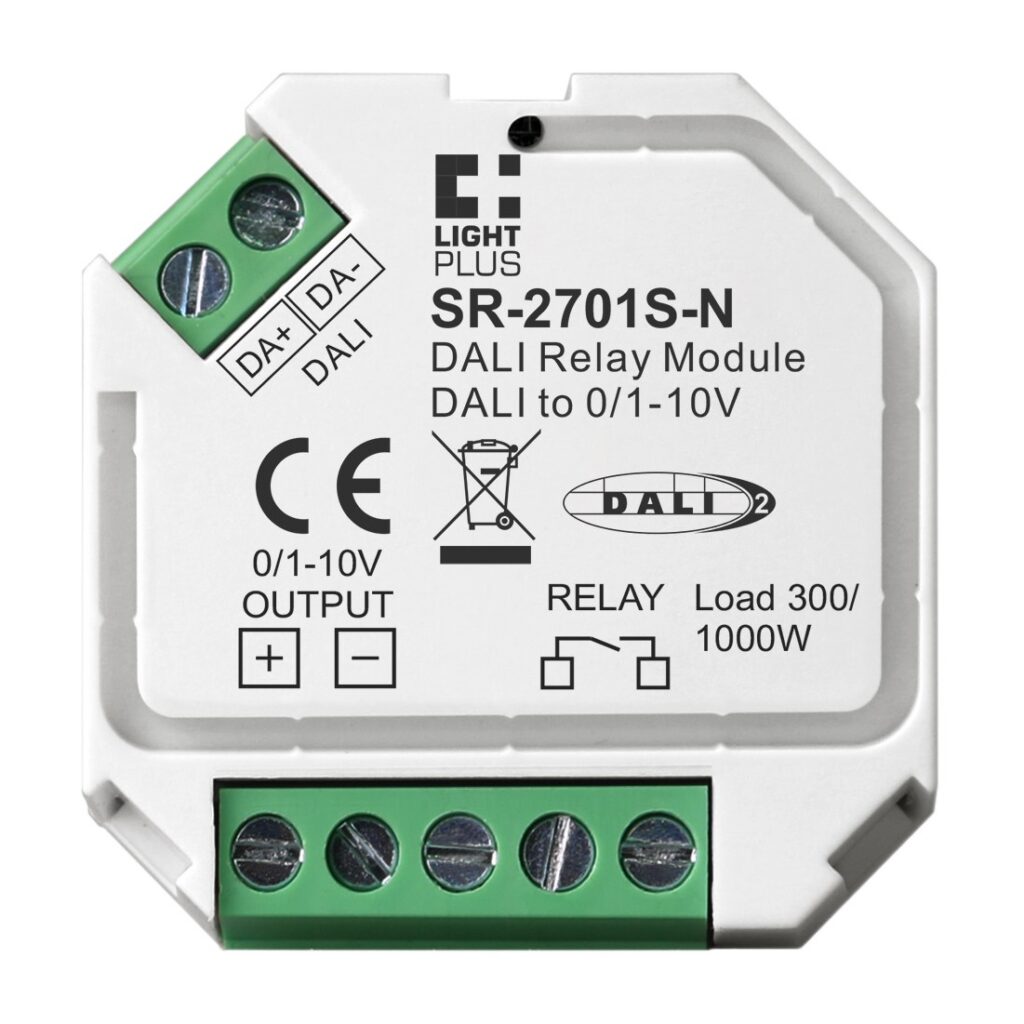

SR-2701S-N

Technical Specification

Electrical
DALI control input1
DALI consumption3mA
Number of DALI addresses1
Switching voltage AC100-240V
Switching voltage DCMax. 30V
CurrentResistive load: max. 4.3A Capacitive load: max. 1.3A Inductive load: max. 4.3A
Type of contact1 normally closed
Output 0/1-10V Current<10mA
Protection & Environment
Protection classII
Dimensions & Mounting
Dimensions80x80x53mm
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA

Downloads

Download all
PDF Tender Text ↓ PDF UKCA Declaration of Conformity ↓ PDF CE Declaration of Conformity ↓ PDF REACH Declaration ↓
