Home / Products / LED Drivers / SR-2309PRO-5C
LED Drivers

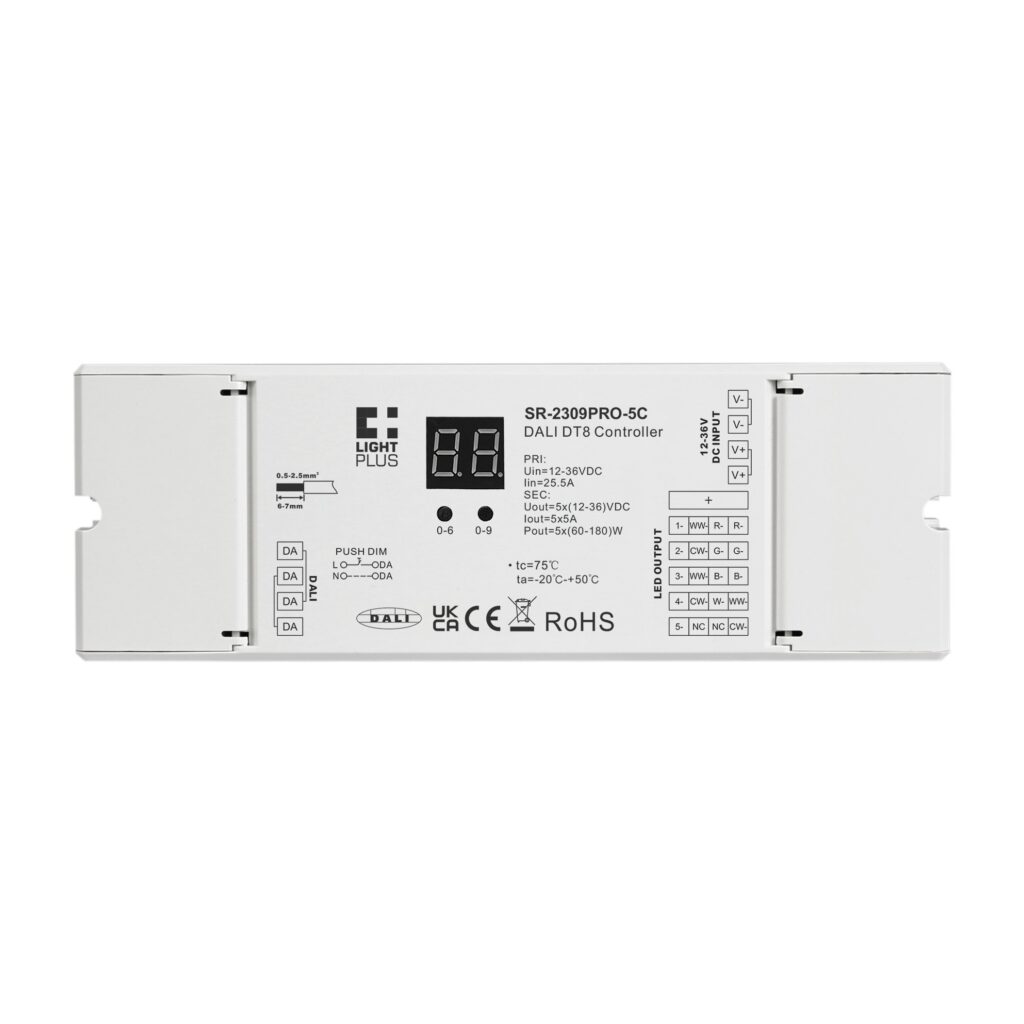

SR-2309PRO-5C

Technical Specification

Electrical
Input Voltage12-36VDC
Output Current5 x 5A
DALI Consumption2mA
Protection & Environment
Ambient Temperature-20℃ ~ 50℃
Further Details
Output Power5x(60-180)W

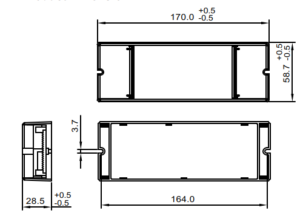

Size(LxWxH)170x59x29mm
RemarksConstant voltage
Dimming Range0.1%-100%
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA

Downloads

Download all
PDF Tender Text ↓ PDF UKCA Declaration of Conformity ↓ PDF CE Declaration of Conformity ↓ PDF REACH Declaration ↓
