Photometric
- Item code
- LP-IL82140
- Output
- 4,400 lm · 40 W
- Beam angle
- 40°
- Peak intensity
- 9,208 cd
- Centre lux at 2 m / 3 m
- 2,302 / 1,023 lx
- Beam width at 3 m
- 2.18 m
- BUG rating
- B3-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Industrial Lights

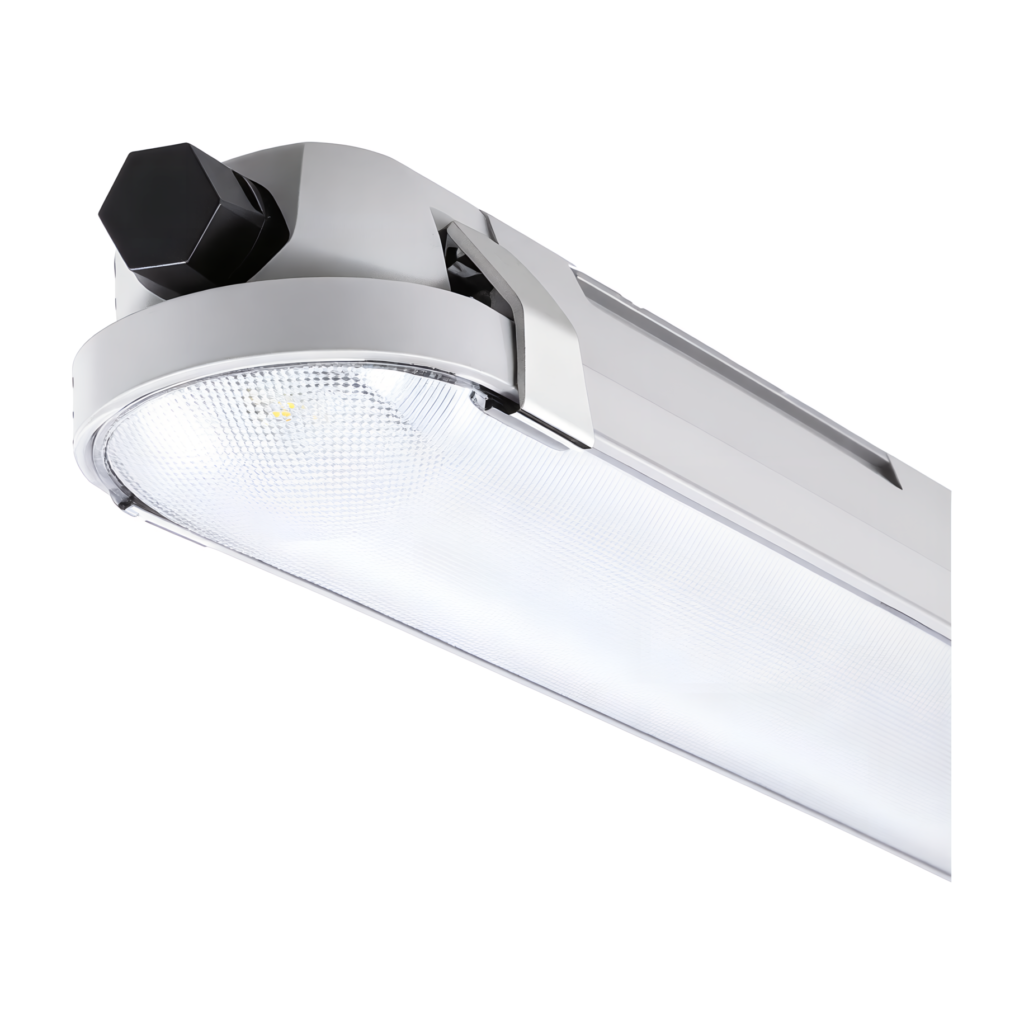

Parky II
This LED luminaire high efficiency LED system produces high performances of luminous lux with various color temperature illumination.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-IL82120 | 20W | LED | 2200lm | A1200 x B95 x C75 mm |
| LP-IL82140 | 40W | LED | 4400lm | A1200 x B95 x C75 mm |
| LP-IL82160 | 60W | LED | 6600lm | A1200 x B95 x C75 mm |
Technical Specification
Construction
HousingMade of Polycarbonate raw material and GRP. shatterproof, radiation protection, UV with high mechanical resistance & with stainless steel Clip.
DiffuserPMMA Polycarbonate milky anti glare with anti yellowing unbreackable (specially for LED) diffuser. UV stabilized with longitudinal striations for a better control of glare and a high light output.
ReflectorAluminium Reflector
Optical & Performance
Beam Angle20° / 40°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
IP Rating66
IK08
Further Details
StandardsDesigned and manufactured to comply with EN 60598
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
