Photometric
- Item code
- LP-IL295050
- Output
- 7,500 lm · 50 W
- Beam angle
- 120°
- Peak intensity
- 2,299 cd
- Centre lux at 2 m / 3 m
- 575 / 255 lx
- Beam width at 3 m
- 10.39 m
- BUG rating
- B2-U0-G2
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Industrial Lights
Fact
White

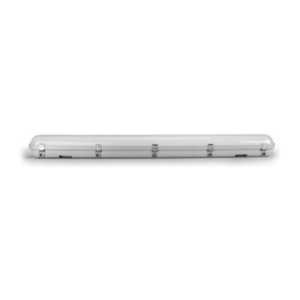

Fact LED lighting fitting made of high quality polycarbonate. The product range of Fact waterproof LED lights, made entirely in polycarbonate. Suitable for industrial environments between 2 and 9 meters in height, The several fixing ways and the strength of materials make Fact a durable and reliable solution for application in industrial and commercial areas. Fact is made of technopolymeric polycarbonate, with stainless steel cables for suspension application. The diffuser is made of optic polycarbonate and the closing hangs are included.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-IL295020 | 20W | LED | 3000lm | A650 xB117 x C70 mm |
| LP-IL295036 | 36W | LED | 5400lm | A1250 xB117 x C70 mm |
| LP-IL295040 | 40W | LED | 6000lm | A1250 xB117 x C70 mm |
| LP-IL295050 | 50W | LED | 7500lm | A1250 xB117 x C70 mm |
| LP-IL295055 | 55W | LED | 8250lm | A1250 xB117 x C70 mm |
| LP-IL295060 | 60W | LED | 9000lm | A1550 x B117 x C70 mm |
| LP-IL295070 | 70W | LED | 10500lm | A1550 x B117 x C70 mm |
Technical Specification
Construction
HousingInjection Molded, in RAL 7035 Grey Polycarbonate, Vandal Resistant, UV Stabilized, High Mechanical Resistance Due to the Frame Reinforced by Internal Ribbing
DiffuserInjection Moulded, in V2 self-extinguishing Polycarbonate, UV Stabilized, Clear Polycarbonate, Prismatic Inside for Better Light Control & High Lighting Performance. The External Smooth Finish Facilitates Cleaning, Essential to Maintain Maximum Lighting Efficiency.
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Beam Angle120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 65C°
IP Rating66
IK08
