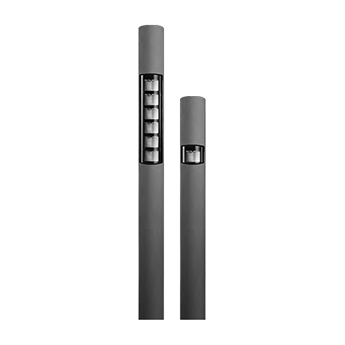

Transforming the aesthetics of modern street lighting, this innovative system merges functionality with minimalist design to bring a fresh sense of order to urban spaces. The streamlined structure integrates vertical optical modules into a sleek, cohesive form, delivering exceptional performance across a range of public environments. Specifically designed for versatility, the bollard and pole mounted luminaires offer ideal solutions for illuminating pathways, building perimeters, parks, and urban squares. Equipped with advanced micro-faceted reflector technology, they ensure superior visual comfort while meeting stringent glare control standards—setting a new benchmark in architectural outdoor lighting.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STR31703X4.5 | 3 X 4.5W | LED | 931.5lm | AØ114 X B800mm |
| LP-STR31706X4.5 | 6 x 4.5W | LED | 1863lm | AØ114 X B3000/4000/6000mm |
| LP-STR317012X4.5 | 12 x 4.5W | LED | 3726lm | AØ114 X B3000/4000/6000mm |
Technical Specification
Construction
HousingSteel
Color AvailableBlack Baffle, Graphite, Concrete Gray, Clay, Concrete Look, Sand
Optical & Performance
Beam AngleSymmetric / Asymmetric
Beam AngleSymmetric / Asymmetric
Electrical
VoltageAC220~240V
Operating GearElectronic Converter
Surge Protection10 kV
ClassI
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-25C° ~ +65C°
IP Rating65
IK09
Dimensions & Mounting
Mounting / BaseBuried Base 0.8m
Further Details
Weight64.3 kg
