Decorative Poles

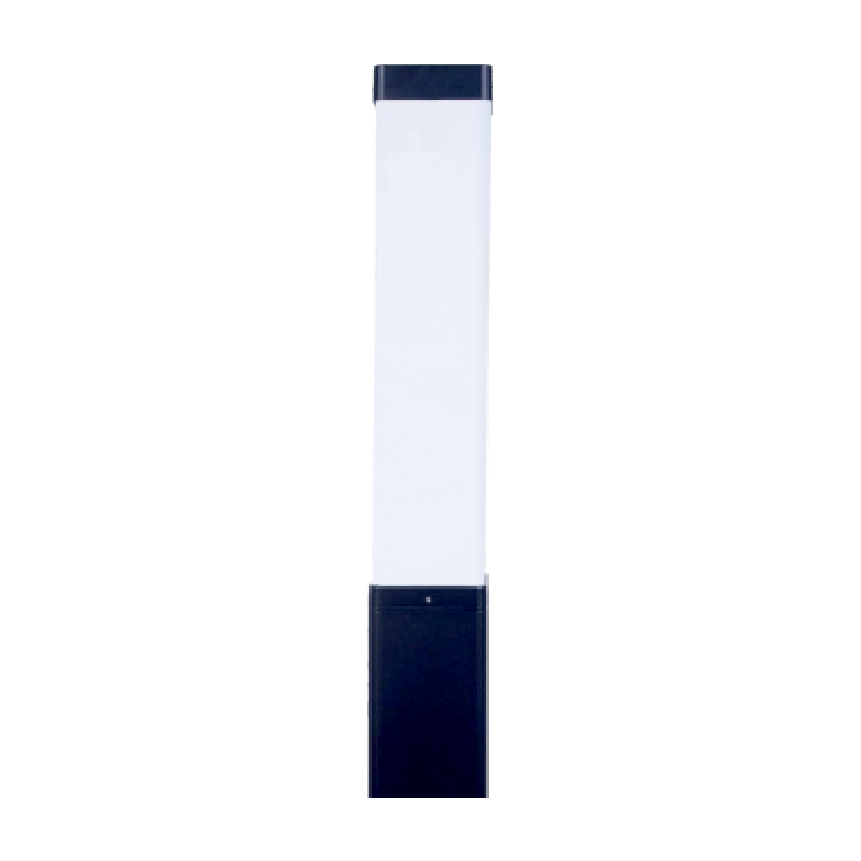

Chester
Black & Grey
Chester LED Street light with a quiet, modern form. The sealed module achieves consistent performance in dusty or humid environments. Dimming options and controls support energy savings during low-traffic periods.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STR319930 | 30W | LED | 3300lm | A200 X B200 X C1000 mm A200 X B200 X C1500 mm A200 X B200 X C2000 mm A200 X B200 X C2500 mm A200 X B200 X C2000 mm |
| LP-STR319940 | 40W | LED | 4400lm | A200 X B200 X C1000 mm A200 X B200 X C1500 mm A200 X B200 X C2000 mm A200 X B200 X C2500 mm A200 X B200 X C2000 mm |
| LP-STR319960 | 60W | LED | 6600lm | A200 X B200 X C2500 mm A200 X B200 X C3000 mm A200 X B200 X C3500 mm A200 X B200 X C4000 mm |
Technical Specification
Construction
HousingStainless Steel and Extruded Aluminum Body
DiffuserOpal PMMA
Color AvailableBlack & Grey
Optical & Performance
Lifespan> 50,000 Hours (L70 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ +65C°
IP Rating65
IK10
