Bollards
Windsor
Black & Grey

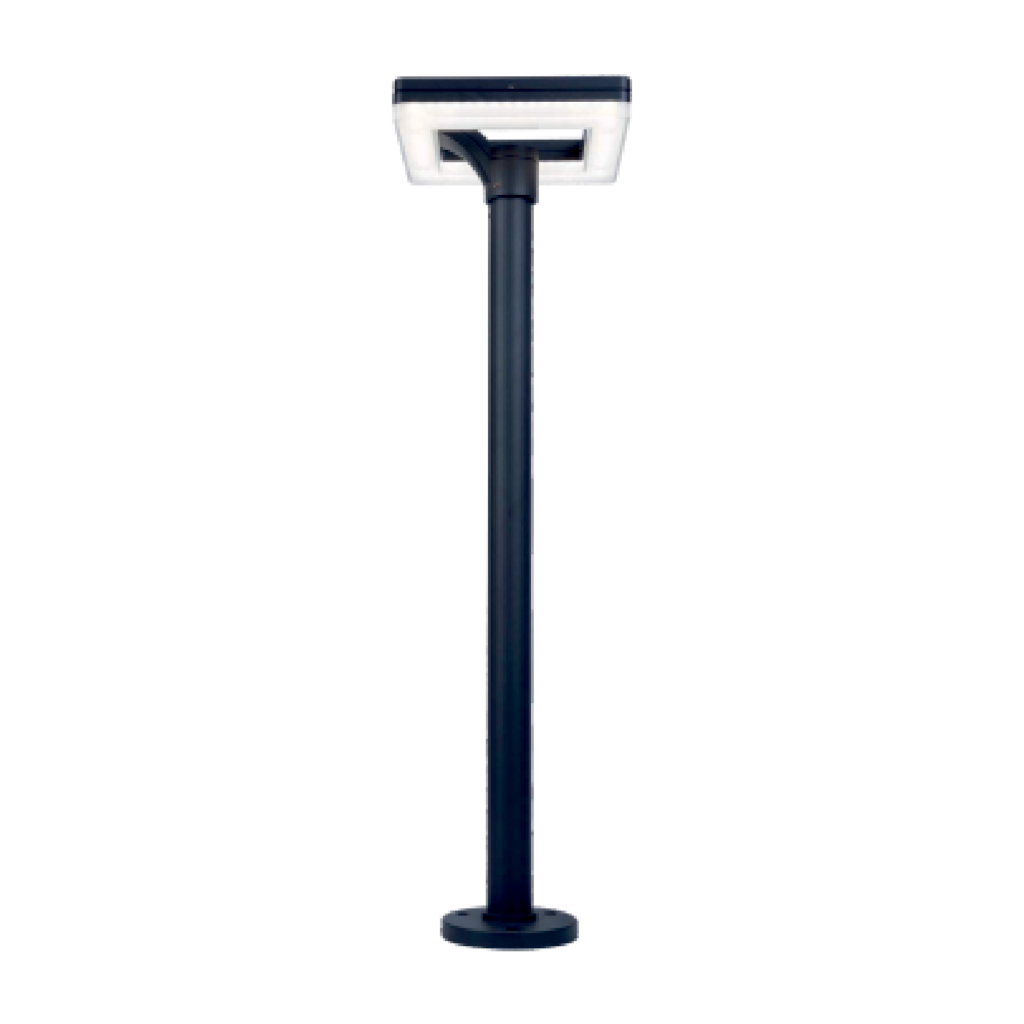

This LED bollard delivers comfortable pathway lighting with restrained glare and clean cut-off. The sealed optic and weather-rated gaskets keep moisture and dust out. Offered with symmetric or forward-throw distributions to keep light where it is needed. Root or surface mounting options simplify installation on new builds or refurbishment.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-BL334610 | 10W | LED | 1080lm | A220 X B220 X C400 mm A220 X B220 X C650 mm A220 X B220 X C800 mm |
Technical Specification
Construction
HousingDie-Cast Aluminum and Extruded Aluminum Pole
DiffuserClear PC
Color AvailableBlack & Grey
Optical & Performance
Beam Angle120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20°C~+65°C
IP Rating54
IK09
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
