LED Strip Lights
Flexy
Milky

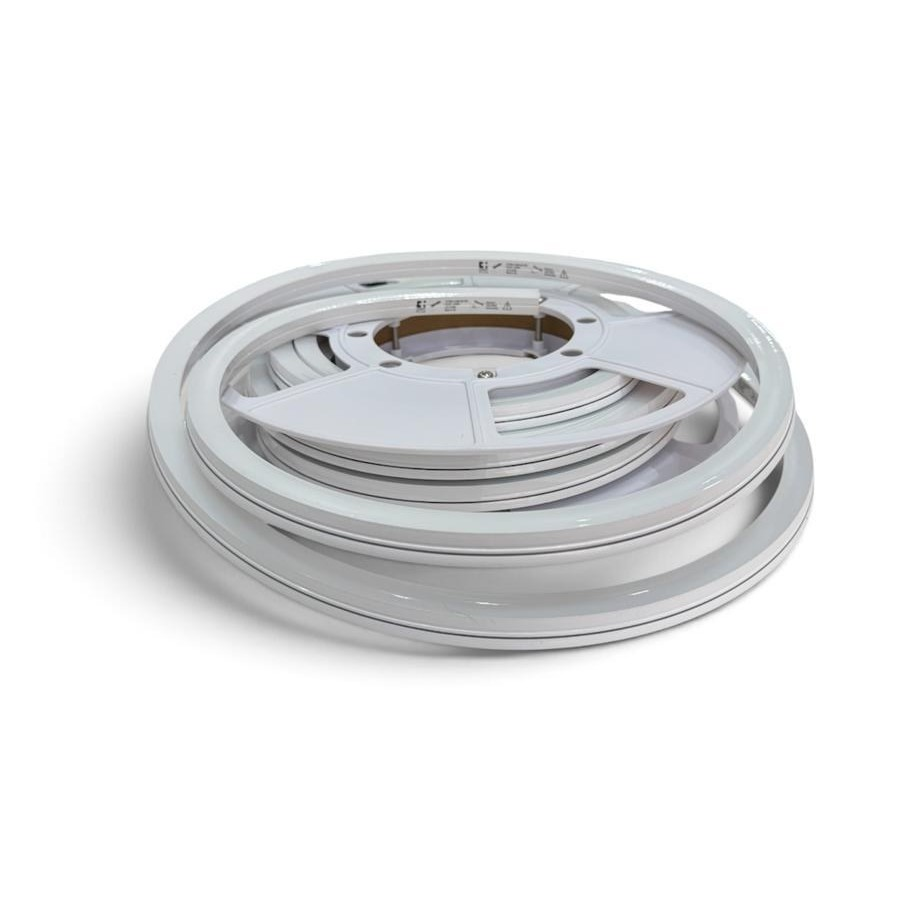

IP68 flexible dot free linear LED light line with a 16 mm x 16 mm (W x H) cross section. UV resistance, chemical stability against urban gases and protection against abrasion. Vertical bending only, excellent solution for indoor/outdoor organic facade accent lighting or decorative applications requiring IP68 ingress.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-SRLV4.8 | 4.8 W/M | LED | 528lm/m | 16 X 16 mm |
| LP-SRLV9.6 | 9.6 W/M | LED | 1056lm/m | 16 X 16 mm |
| LP-SRLV12 | 12 W/M | LED | 1320lm/m | 16 X 16 mm |
| LP-SRLV14 | 14 W/M | LED | 1540lm/m | 16 X 16 mm |
Technical Specification
Construction
HousingAnti-yellowing & Heat Resisting Silicone Glue Extrusion Chemical Resistance Acid
DiffuserMilky White Silicone
Color AvailableMilky
ReflectorAluminium Reflector
Optical & Performance
Beam Angle120°
Lifespan>50,000 Hours (L90 B10)
Electrical
Voltage24V DC
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 60C°
IP Rating68
IK08
Further Details
Standard Length5000 mm
Lead Cable300 mm
BendingVertical bending only, minimum bending diameter 200 mm
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
