Track Lights

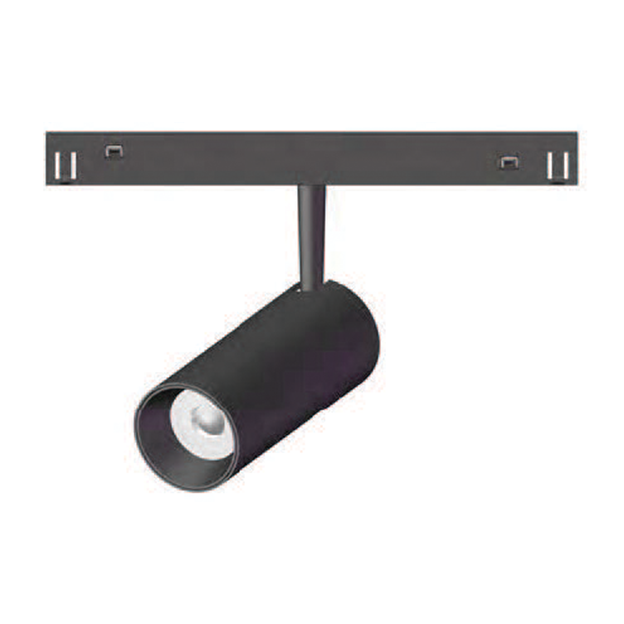

CAM
Black
White
Cam Led Track Light with Low voltage DC48V magnetic track light is safe without Electric shock. It has an Aluminum adjustable ring changes the viewing angle. The installation of magnetic track system has several types which can meet dierent design requirements and is easy to install and move. This magnetic track light has the wide beam angle. Application areas: Retail, oce, residential, hotels, restaurants, shopping mall, showroom home, shop etc.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-TL3010 | 10W | LED | 1200lm | A40 X B100 mm |
| LP-TL3015 | 15W | LED | 1800lm | A60 X B120 mm |
| LP-TL2030 | 30W | LED | 3600lm | A68 X B155 mm |
Technical Specification
Construction
HousingAluminum
DiffuserPolycarbonate Lens.
Color AvailableWhite, Black
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36°
Lifespan>50,000 Hours (L90 B10)
UGR<22
LUMINOUS EFFICACY (LM/W)120
MACADAM<3
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-30C° ~ 65C°
IP Rating20 / 44
IK06
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
