Decorative Poles

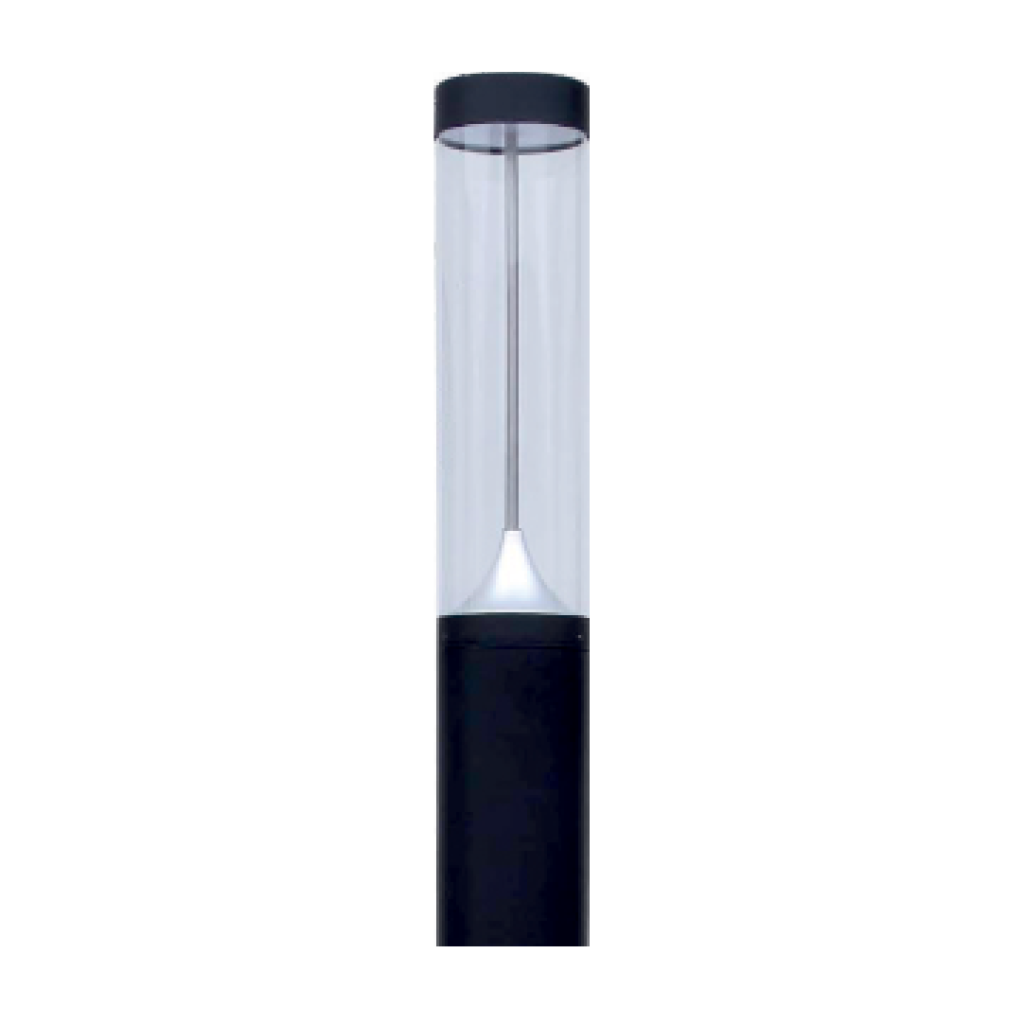

Brigton
Black
A versatile street luminaire that balances cost, output, and longevity. Precision lenses shape the beam for local streets, collectors, and pathways. Tool-free latching and a hinged gear tray make servicing straight forward.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STR318215 | 15W | LED | 990lm | AØ180 mm |
| LP-STR318230 | 30W | LED | 2344lm | A250 X B250 mm |
| LP-STR318250 | 50W | LED | 3981lm | A250 X B250 mm |
Technical Specification
Construction
HousingDie Cast Aluminum, Extruded Aluminum Pole
DiffuserClear PC
Color AvailableBlack
Optical & Performance
Beam Angle90°
Lifespan> 50,000 Hours (L70 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ +65C°
IP Rating65
IK10
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
